Dual outlet-type BOV. Dual Port vents both to the atmosphere and back into the air intake. Ports with sequential timing allow quieter operation during everyday driving while getting all the benefits of a vent-to-atmosphere BOV under race conditions. They are easily converted to an entire atmospheric or full bypass unit by using supplied port blanking plug.
Application Examples (non-exhaustive list)
Kompact Dual Port 25 mm:
Audi A3 1.8T, S3 1.8T, A4 1.8T, A6 1.8T, TT 1.8T
Bentley Continental GT
Ford Focus RS
Mazda MX-5 SE & SP
Peugeot 605 SRTI, 406 SRI
Porsche 911 964, 944, 996 Turbo, Cayenne Turbo
Saab 900 Turbo, 9000, 93, 95
Toyota Celica GT-Four
Volkswagen Beetle 1.8T, Jetta 1.8T, Passat 1.8T, Polo GTI 1.8T
Volvo 440, 480, 740
Universal use with models using 25 mm piping (internal diameter)

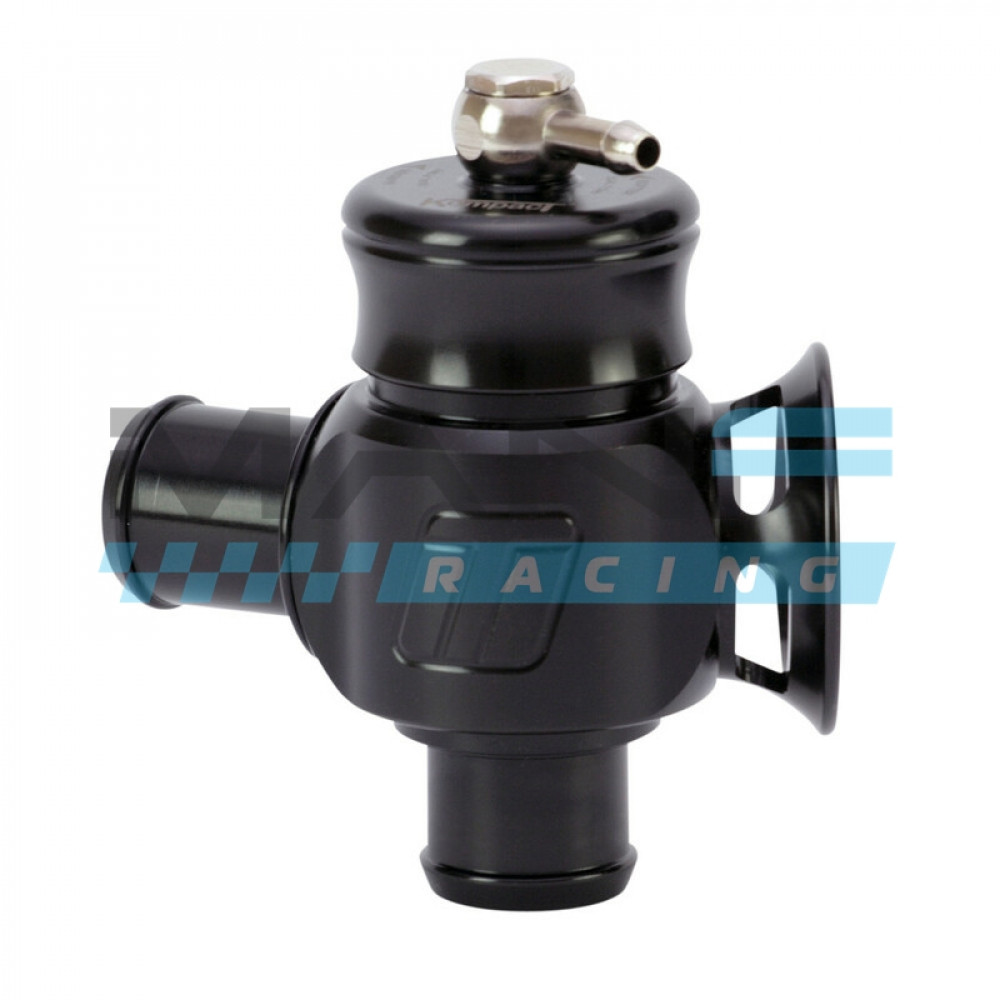

Turbosmart Kompact Dual Port Dump Valve Specs:
Half atmospheric half recirculation model
Outlet diameter: 25 mm
28 mm piston
Made from aluminium
Superior flow and high pressure resistance
Possibility for full atmospheric or full recirculation
